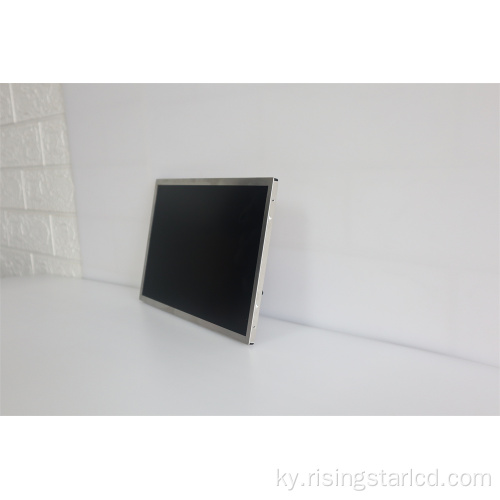

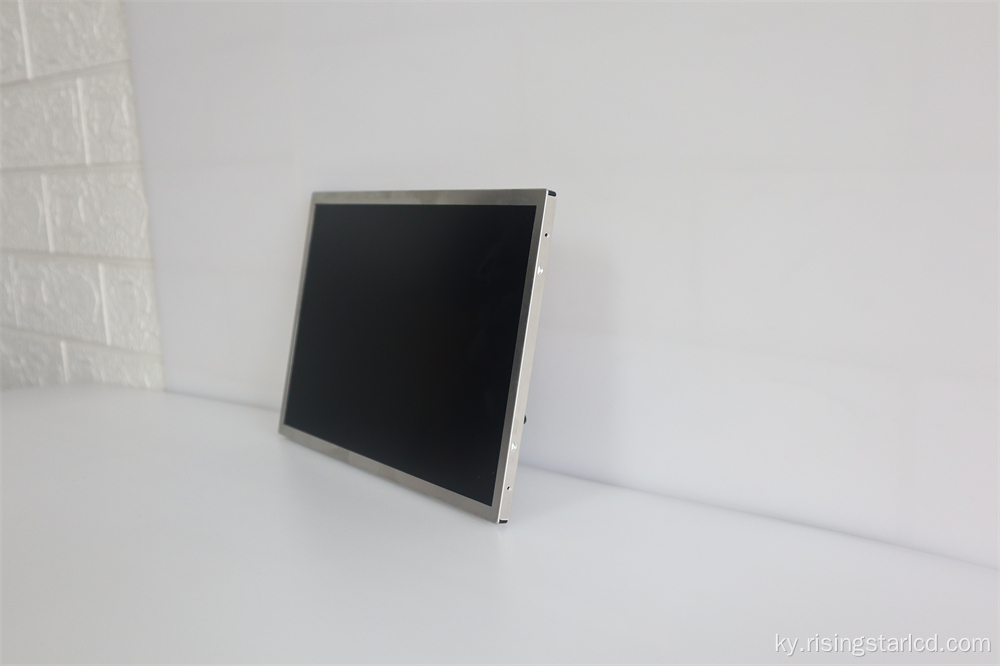

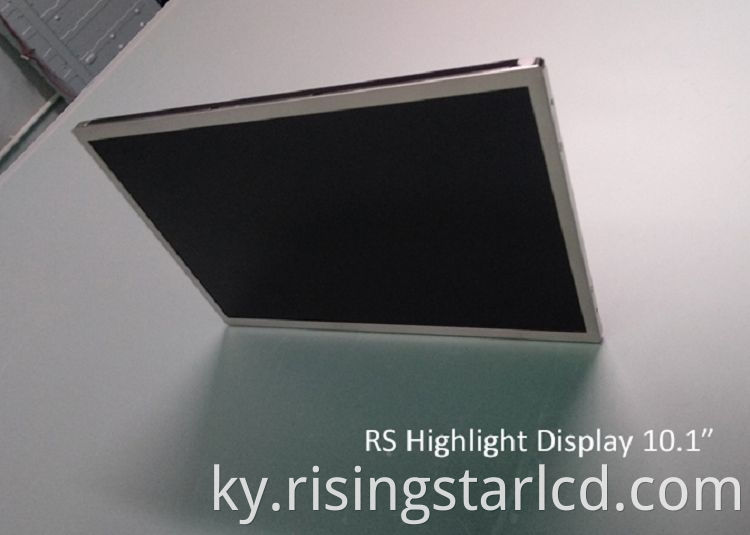

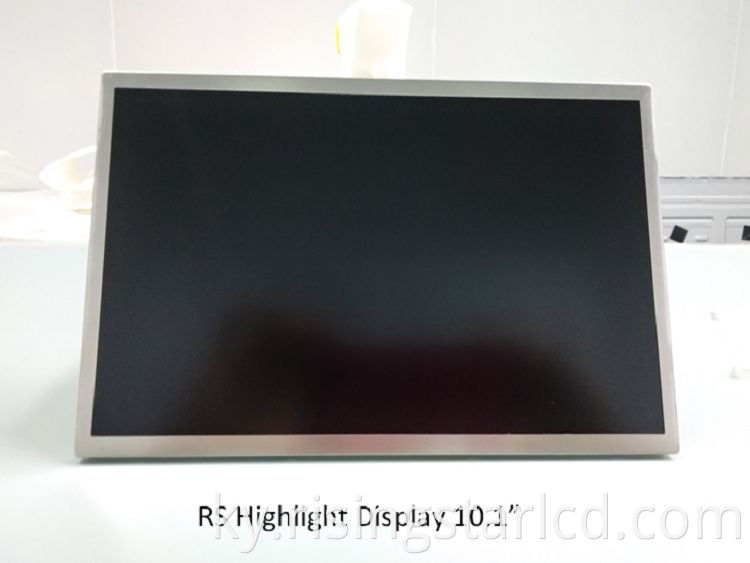

10.1 "бийик жарыктык LCD экран параметрлери
|
Items |
Specification |
Unit |
Note |
|
Active Screen Size |
10.1 |
Inches |
|
|
Display Area |
216.96*135.6 |
MM |
|
|
Outline Dimension |
229.46*149.2*4.96 |
MM |
|
|
Driver Element |
A-Si TFT active matrix |
|
|
|
Display Colors |
16.7M |
Colors |
|
|
Color Gamut |
72 |
% |
|
|
Number of Pixels |
1280*800 |
Pixel |
|
|
Pixel Arrangement |
RGB vertical stripe |
|
|
|
Pixel Pitch |
0.21*0.63 |
MM |
|
|
Display Mode |
Normally Black |
|
|
|
Surface Treatment |
Haze 2%, 3H |
|
|
|
Brightness |
1000 |
Nits |
|
|
Power |
23 |
W |
|
|
Zoom |
16:9 |
|
|
|
Working temperature |
-20--60 |
|
|
|
Weight |
1.8 |
Kg |
|
|
Backlit life |
50000 |
Hr |
|
